Content
- Introduction
- How it works
- Information for residents
- Information for property management
- Support and further help
Introduction
KONE's digital displays replace traditional notices in buildings and complement digital building displays with modern information displays – directly in the elevator. Through integration with the Allthings platform, pinboard posts can be automatically displayed on KONE screens.
This ensures effective communication with residents – right where they are every day.
How it works
Thanks to the direct connection to the Allthings Cockpit, pinboard posts from the communication center can be specifically published on KONE displays. Further display content can be preconfigured centrally via the KONE platform.
Functions at a glance:
- Display of current announcements, weather, time, status messages, and more
- Display on networked elevator displays from KONE
- Automatic synchronization with the Allthings pinboard
- Flexible control by building or location
Information for residents
Using digital displays in the elevator
The digital KONE displays are clearly visible in the elevators and entrance area of your property.
They show selected pinboard posts and relevant information that is regularly updated by property management. No action is required on your part.
Frequently asked questions
Where does the displayed content come from?
→ It is provided by property management via Allthings.
Can I publish content myself?
→ No, this is done exclusively by the responsible property management.
What to do in case of technical problems?
→ Please contact your property management or KONE support directly.
Information for property management
Setup and activation
For displaying pinboard posts in KONE elevators, the following requirements must be met:
- The digital screen function must be activated and set up
- The KONE displays must be installed on-site and connected to the network
- Connection to Allthings is made via a pre-configured interface
- Content can be managed and updated remotely
Publishing pinboard posts on KONE screens
When creating a new post in the communication center (Allthings Cockpit), you can specify whether it should also be displayed on the KONE displays in the elevators.
Here's how to proceed:

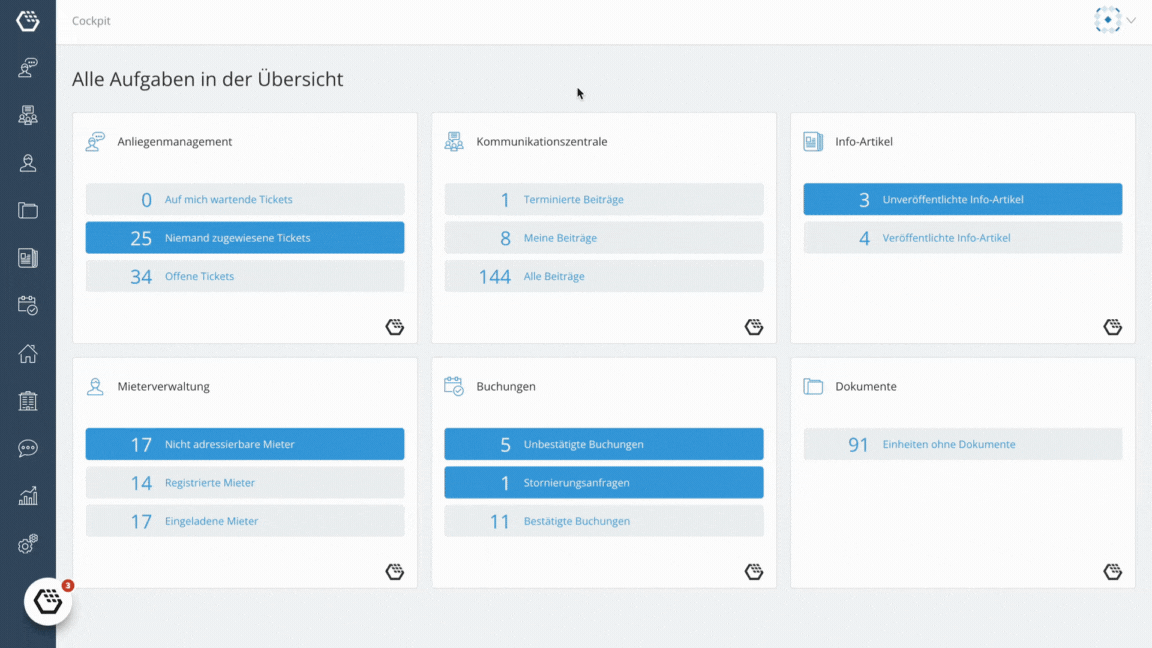

- Open the Allthings Cockpit.
- Go to the communication center.
- Create a new pinboard post.
- Activate the option "Display on screen".
- Select the display period.
- Assign a title for the post.
→ After saving, the post will be automatically transmitted and displayed on the linked KONE displays.
Note: Only the content is transferred – the design and layout of the display are defined by KONE. More information can be found here.
Please note:
- Character limit: Depending on the design of the news page connected to Allthings, character limits apply to the title and text of a post (by default 50 characters for the title and 150 characters for the text). If the limit is exceeded, the post is not shown on the screen and the person who created it receives an email notification.
- Number of posts shown at once: Only a limited number of posts is shown on each screen at the same time. A new post replaces one that is already displayed.
- Scheduled posts: There must be a short interval between two scheduled posts for the same screens. Otherwise, the later post is not shown and the person who created it receives an email asking them to adjust the time.
Introduction to residents
Inform your residents via pinboard post or notice about the new digital information display in the elevator.
Point out the following advantages:
- All relevant information centrally visible
- No paper, no forgotten notices
- Automatic and regular updates
Support and further help
- Information on integration: Allthings Marketplace – KONE Integration
- Further information on the solution: KONE Switzerland website
- Technical support for integration or elevator systems: KONE Contact page Switzerland
For further questions, simply contact our Customer Success or Support team.
